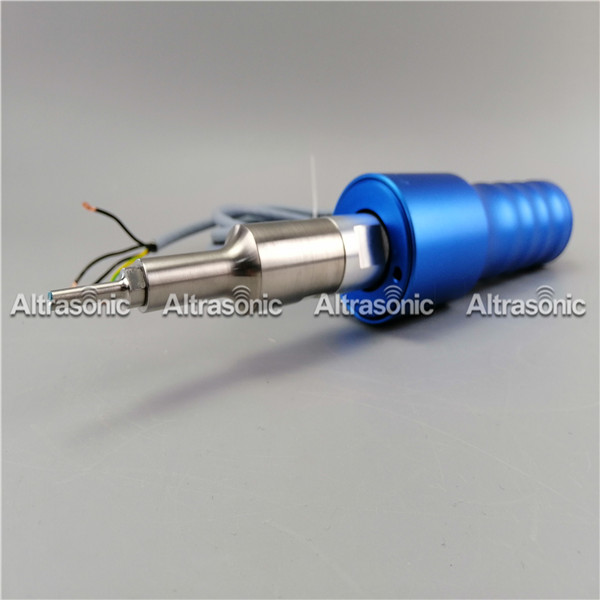

30kHz 1200W High Speed Ultrasonic Spot Welder for Welding Plastic
Description:
Ultrasonic welding of thermoplastics causes local melting of the plastic due to absorption of vibration energy. The vibrations are introduced across the joint to be welded. In metals, Ultrasonic welding occurs due to high-pressure dispersion of surface oxides and local motion of the materials. Although there is heating, it is not enough to melt the base materials. Vibrations are introduced along the joint being welded.
Specification:
| Item No. | HSW20 | HSW30 | HSW35 | HSW40 | HSW50 |
| Frequency | 20kHz | 30kHz | 35kHz | 40kHz | 50kHz |
| Power | 1000W | 1200W | 1000W | 500W | 300W-500W |
| Horn | ≤12mm | ≤10mm | ≤10mm | ≤10mm | ≤10mm |
| Housing Diameter | 44mm | 44mm | 44mm | 44mm | 44mm |
| Weight of Welder | 1.0kg | 1.0kg | 1.0kg | 1.0kg | 1.0kg |
Advantage:
1. Ultrasonic welding can be applied to a diversity of combination of the material welding, It can not applied for semiconductor materials such as high temperature caused by the pollution and the operation, It is easy to weld the heat conductivity and high conductivity materials like gold , silver , copper , aluminum , etc .
2. The consumption power is small , only for the resistance spot welding 5% left and right sides, weld deformation less than 3-5% , solder joint strength and strength the stability by an average of about 15-20% , on the surface of cleanliness requirements is not high.
3. Ultrasonic welding process is widely used in the microelectronics devices and finishing technology, the most successful application is the integrated circuit element of interconnection and it is used in the electronic aerospace electrical packaging plastic industries .
4. Ultrasonic welding process successfully joins many dissimilar-materials combinations, It welds without filler metals or gases, It is fast and easily automated, Because ultrasonic welding does not require the connective bolts or soldering materials to bind two pieces together, it saves on the manufacturing & production costs.
5. Ultrasonic welding process is ideal because it creates the reliable bonds without introducing any impurities or thermal distortion to the components being joined, The ultrasonic weld dries rapidly because there are no adhesives or solvents to dry and there is no need for the materials to cure.
6. Ultrasonic Welding process offers the clean exteriors of welded parts, The potential manpower savings, The absence of drying time in the jig , the gas tight and it has completely stable, possibility of welding in the presence of the foreign bodies such as the powders and the liquids that are incompatible using any other conventional assembly processes .
Application:
• Thermoplastics
• Non-crystalline plastic
• Semi-crystalline plastic
• Non-woven fabric
• Thermoplastic fabrics
• Polymeric materials
• Coated paper
• Mixed fabrics
Service:
If you are not sure whether your application is suited for ultrasonic assembly, please rely on us. We are here to help you. Our applications lab is staffed with highly trained ultrasonic specialists whom you can call at any time for advice or information. They will evaluate your applications from parts, prototypes or blueprints, and provide you with prompt and knowledgeable recommendations. This no-cost, no obligation service includes feasibility engineering studies, design recommendations, and material guidance much more.
